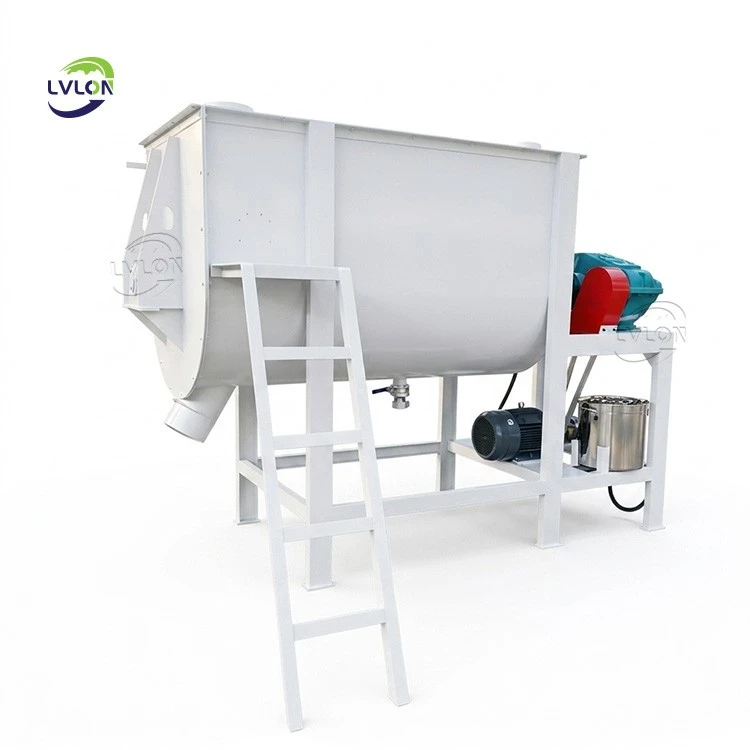

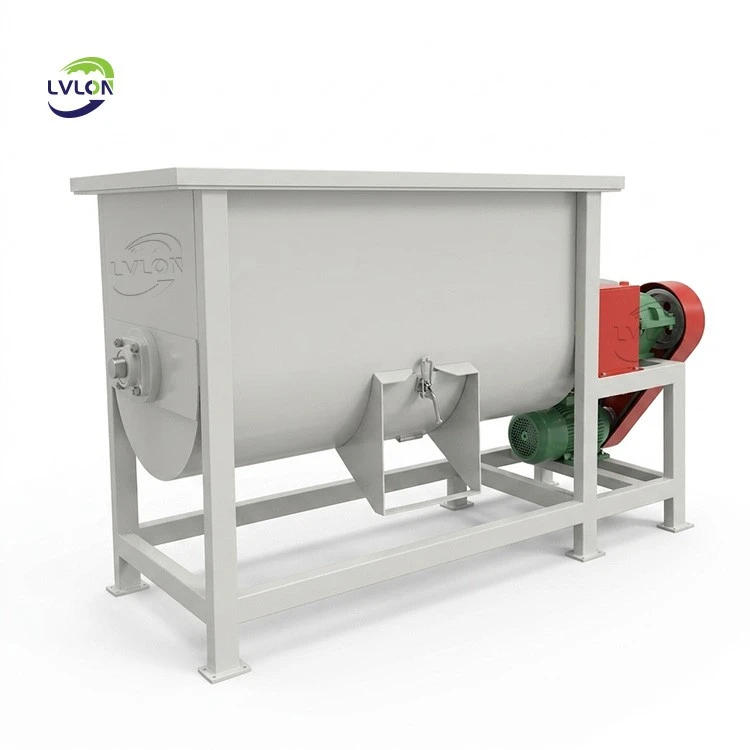

Technical Parameters of Horizontal Feed Mixer
This equipment adopts a horizontal U-shaped structure, Compatible with single-shaft double ribbon or twin-shaft paddles. Specifications and parameters are as follows:
-
Structure Type: Horizontal U-shaped structure. As a standard **U shaped feed mixing machine, Low center of gravity, Runs smoothly.
-
Hybrid Rotor: Single-shaft double ribbon or single/double-shaft paddle type. Internal and external counter-rotating ribbon agitators, Strong convective mixing.
-
Batch mixing volume: Common specifications include 250kg/p, 500kg/p, 1000kg/p (1 ton) and 2000kg/p (2 tons).
-
Supporting Motor Power: High-torque pure copper motor, The power ranges from 5.5kW to 15kW.
-
Mixing Uniformity: Coefficient of Variation CV ≤ 5% (High specification: CV ≤ 3%). These are the core indicators of the Industrial feed blender.
-
Mixing Time: Only 3 to 6 minutes per batch, Suitable for high-frequency continuous operation.
-
Material Selection:
-
Thickened Carbon Steel Version: Suitable for ordinary dry powder complete feed with high cost performance.
-
Stainless Steel for Material Contact: Designed exclusively for high-moisture materials, Stainless steel feed premix mixer forge, Corrosion resistance.
-
-
Discharging Mode: Large bottom opening design,Fast discharging, Minimize residue to the greatest extent.
Core Selling Points of Horizontal Feed Mixer
-
Powerful shearing force, Eliminate mixed blind spots: Force materials to tumble in three-dimensional space,Materials with large differences in specific gravity can also be mixed evenly in an instant, It is a technologically advanced High uniformity screw feed blender.
-
Quick discharging with wide opening door, Zero cross-contamination: Large pneumatic bottom discharge door, Realize second-level discharging. Extremely low residual rate,Switching formulas is safer.
-
Support for oil and liquid addition: Spray pipes can be installed on the shaft. As high-quality Feed mixer with liquid addition system,The liquid atomizes and disperses rapidly, No caking.
-
The transmission system is robust and durable: Heavy-duty reducer is rigidly connected to the motor. Strong overload resistance, No motor burnout during full-load startup.
Actual Application Scenarios for Target Customers of Horizontal Feed Mixer
-
Self-mixed feed for medium and large-scale livestock and poultry farms: 养殖Users purchase raw materials themselves for centralized rapid mixing. For example, build a production line for the 1 ton horizontal ribbon mixer for cattle. Directly connect to the feed pellet machine for granulation.
-

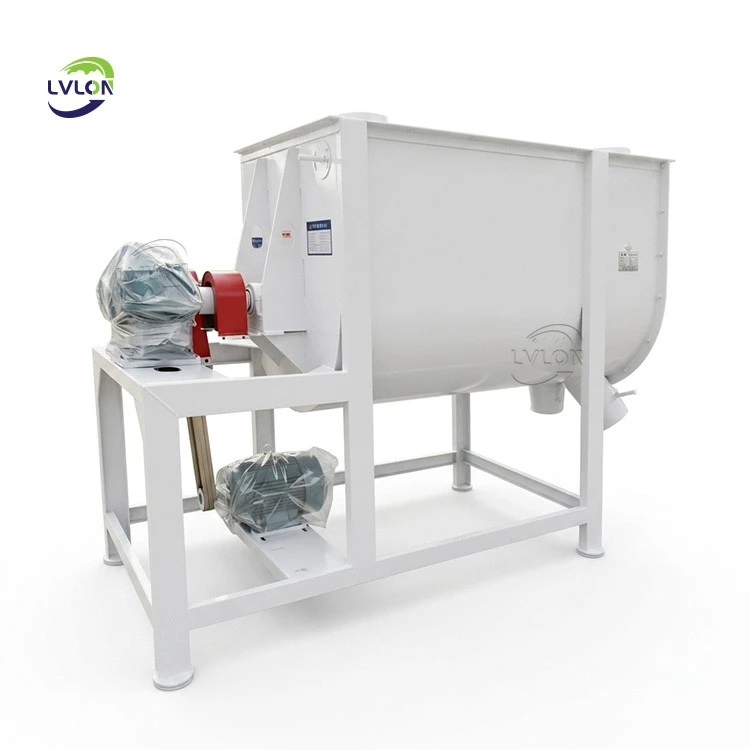

Commercial Feed Processing Plant: As a high-standard Commercial poultry feed mixer machine, Specially used for the production of high-precision premixes, Meet stringent uniformity requirements.
-
Compound Formulation of Crude Fiber and Concentrate Feed: For the mixing working condition of silage, grass meal and concentrated feed. Large-capacity space with powerful tumbling force, No tangling, No jamming.
