Technical Parameters of Animal Feed Grinder and Mixer
| Model | Voltage) | Crusher | Mixer | Machine Size | Weight | Capacity | Packing |
|---|---|---|---|---|---|---|---|
| LV-300 | 220V, 50Hz | 4 kW | 4 kW | 1700 * 950 * 1800mm | 245 kg | 300 kg/h | 4.1 CBM / 330 kg |
| LV-300A | 380V, 50Hz | 7.5 kW | 3 kW | 1700* 950* 1800mm | 264 kg | 300 kg/h | 4.1 CBM / 330 kg |
| LV-500 | 220V, 50Hz | 4 kW | 4 kW | 1850* 1000* 2200mm | 265 kg | 500 kg/h | 4.5 CBM / 360 kg |
| LV-500A | 380V, 50Hz | 7.5 kW | 3 kW | 1850* 1000* 2200mm | 284 kg | 500 kg/h | 4.5 CBM / 360 kg |
| LV-500B | 380V, 50Hz | 11 kW | 3 kW | 1850* 1000* 2200mm | 336 kg | 500 kg/h | 4.5 CBM / 360 kg |
| LV-1000A | 380V, 50Hz | 7.5 kW | 3 kW | 2100* 1250* 2750mm | 318 kg | 1000 kg/h | 7.5 CBM / 550 kg |
| LV-1000B | 380V, 50Hz | 11 kW | 3 kW | 2100* 1250* 2750mm | 370 kg | 1000 kg/h | 7.5 CBM / 550 kg |
| LV-1000C | 380V, 50Hz | 15 kW | 3 kW | 2100* 1250* 2750mm | 385 kg | 1000 kg/h | 7.5 CBM / 550 kg |
| LV-2000A | 380V, 50Hz | 11 kW | 4 kW | 2550* 1550* 3100mm | 550 kg | 2000 kg/h | 12 CBM / 865 kg |
| LV-2000B | 380V, 50Hz | 15 kW | 4 kW | 2550* 1550* 3100mm | 565 kg | 2000 kg/h | 12 CBM / 865 kg |

Features and Core Selling Points of Animal Feed Grinder and Mixer

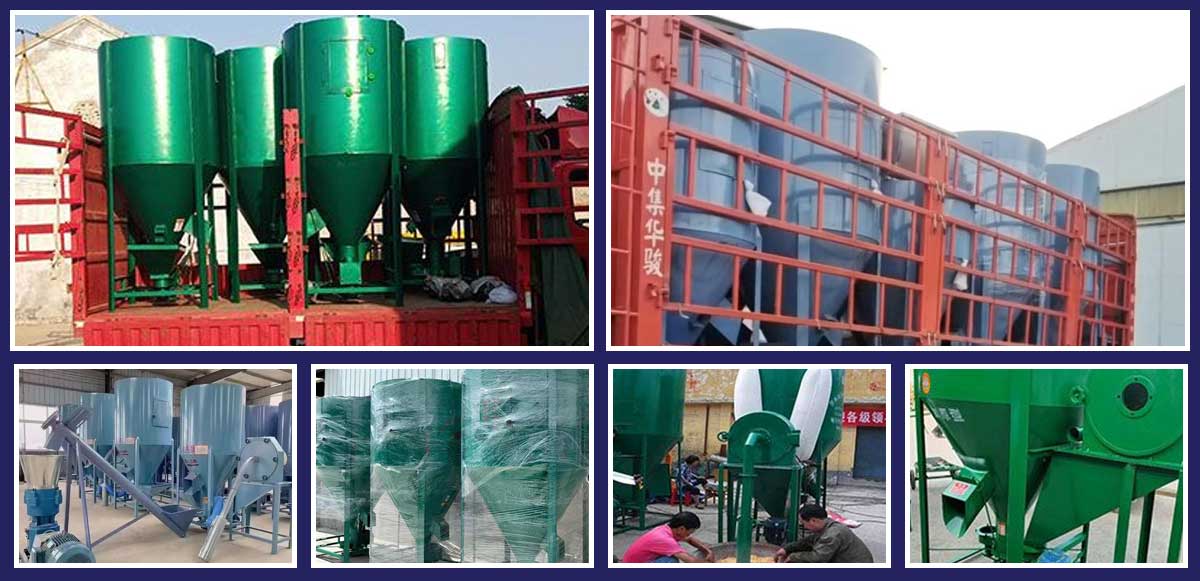

As an experienced china feed mixer manufacturer,We recommend this cost-effective multi-functional product for you animal feed grinder and mixer:
-

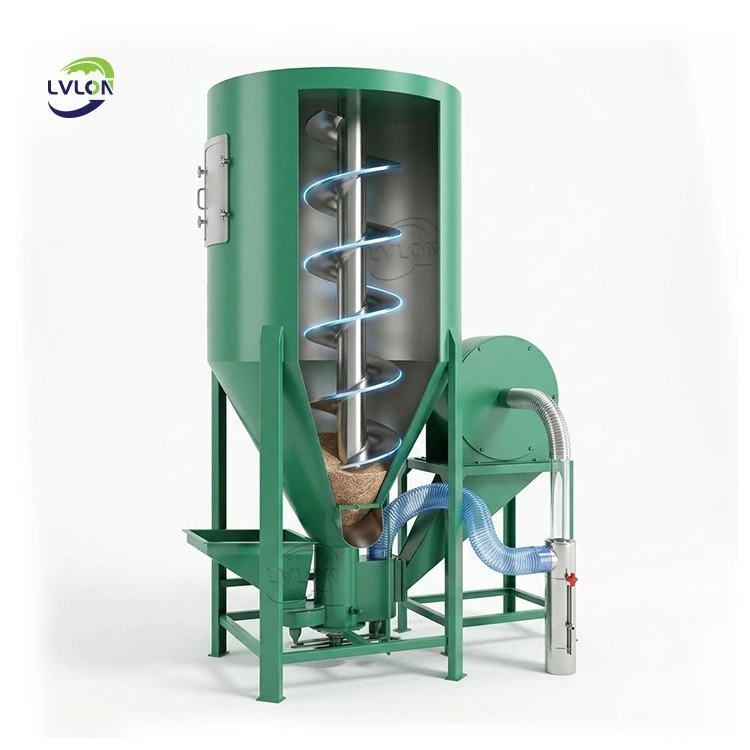

3-in-1 integrated design: The equipment integrates conveying, crushing and mixing functions into a single machine. This is highly efficient 3 in 1 feed mixer grinder**.Instead of buying a crusher and a mixer separately, It not only saves a lot of space, It also directly cuts a large sum of your equipment procurement costs.
-

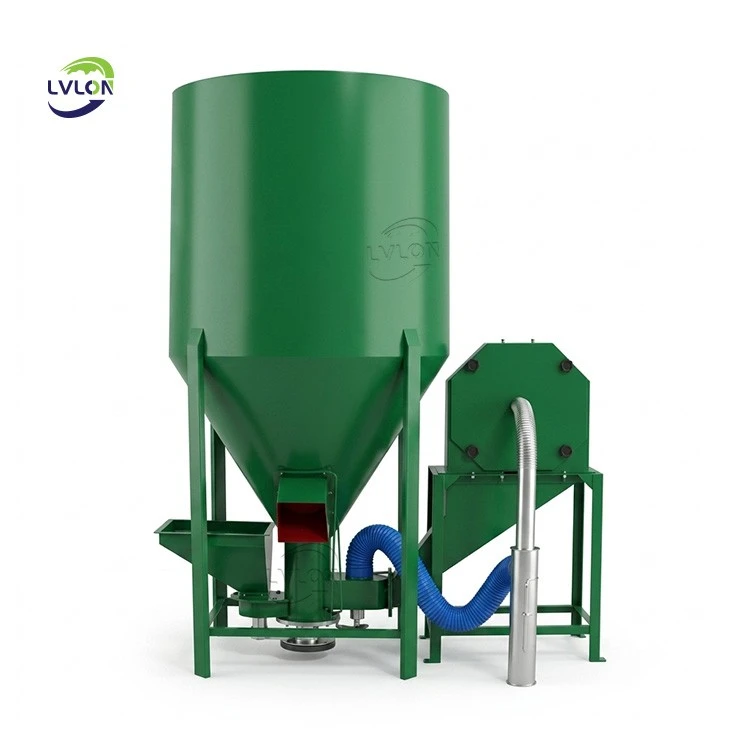

Fully automatic self-priming feeding: This self-priming feed grinder mixer comes with a powerful fully automatic material suction function. Insert the suction pipe into the grain pile, Corn, Soybeans these raw materials can be sucked in automatically by the machine itself.No more manual bending and shoveling material one scoop at a time, work becomes much easier.
-
Small footprint and no occupation of road space: The machine adopts an exquisite vertical structural design of the vertical feed mixer machine. The machine requires vertical overhead space, occupies a very small floor area. Even in small processing workshops or small farms, It can also be placed effortlessly.
-

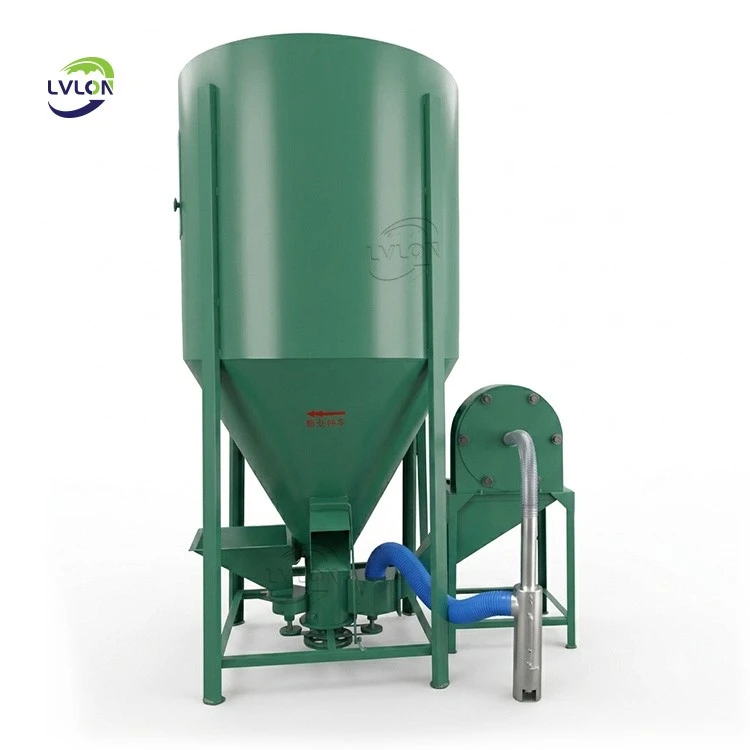

Low power consumption, eco-friendly and low dust emission: Absolutely low power livestock feed mixer.We have optimized the stirring power to 3-4 kW, Extremely energy-efficient. The whole machine features excellent sealing performance, There is barely any dust flying around during processing, The working environment is clean and eco-friendly.
-
Power Customization: We offer flexible power customization. Whether you want an electric poultry feed mixer grinder or a diesel engine feed mixer, either is fine. Use an electric motor if power supply is convenient, When there is no electricity, power shortage, or you need to work outdoors, Switch to the diesel engine and leave immediately.
-
Fast uniform stirring speed: It is an authentic poultry feed mixer and crusher. The spiral blades inside powerfully circulate and scatter materials, Break up and stir the feed in all directions including up, down, left and right. No matter how many trace elements are added, All can be mixed extremely evenly.
-

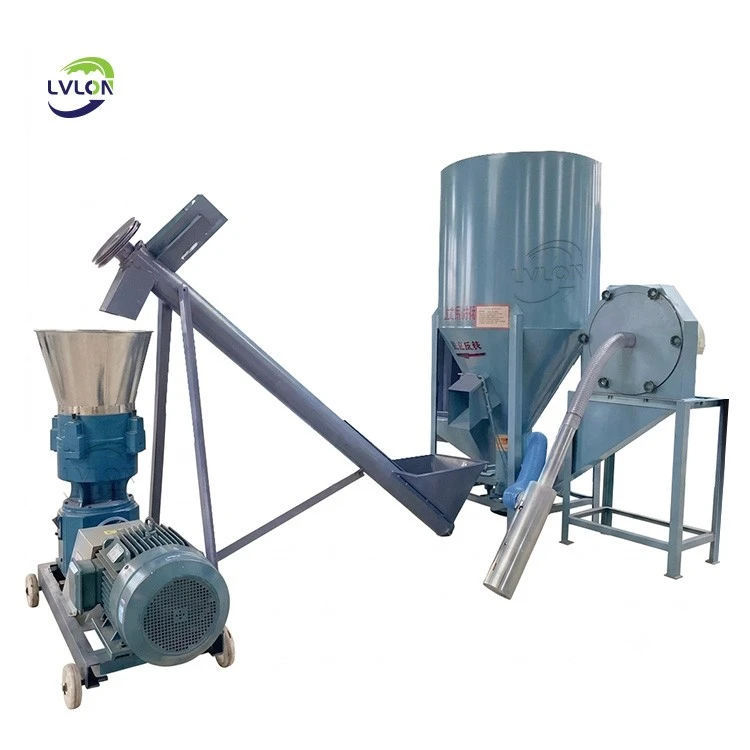

Easy to expand with abundant functions: The feeding process is extremely smooth, It can also be connected to the air purging system. This machine is normally directly connected to the feed pellet machine for use, It can be quickly assembled into a small Small-scale feed pellet production line.

Applicable Scenarios of Animal Feed Grinder and Mixer
-
Applicable Materials: Various grains such as corn and soybeans, forage grasses and crop straws. You can freely make all kinds of homemade poultry feed with it.
-
Applicable animals: Suitable for raising chickens, pigs, sheep, fish and rabbits. Meet the daily feeding needs of livestock, poultry and aquatic products.
-
Target Scenario:
-
Small farms and specialized livestock breeders: Take medium-sized chicken farms for example, We urgently need a reliable feed mixer for chicken farm; or pig farms in need of pig feed grinding mixing equipment.
-
Small Family Farm: Cattle farmers who need cattle feed mixer for small farms, Use it to process feed by yourself.
-
Small and medium-sized feed mills: It can be purchased and put into production as small feed mill equipment for sale Engage in small-scale commercial OEM processing, Or produce and sell products on one's own.
-
On-site Processing Retailers: A feed shop that makes and sells products on-site at neighborhood markets. You may refer to our commercial animal feed mixer price,Low-cost entrepreneurship, Make fresh products on-site and sell them for big profits.
-
