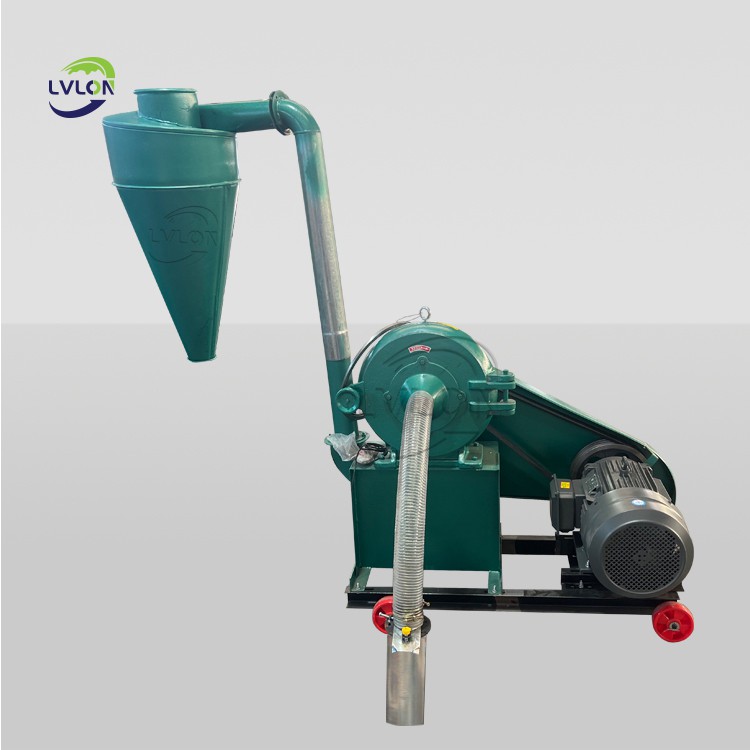

Maize Meal Milling Machine
The core of the maize meal milling machine - Claw Type for Super Fine Maize Powder in the combined effects of shearing, grinding and impact generated between the high-speed rotating moving gear disc and the fixed gear disc. It is particularly suitable for the production of fine corn flour and ultrafine feed powder. This crusher features a self-priming feeding function, a compact structure, and smooth operation. It is quite suitable for use in scenarios such as grain processing stores/small workshops, and farms with strict requirements for feed fineness.
Product model
|
MODEL |
Weight (KG) |
Power(KW) |
Output (KG/H) |
Dimensions (LWH) |
|
21/23 |
50 |
4-4.5 |
200 |
1000*900*1160 |
|
21/23(Cabinet Fan) |
50 |
4-4.5 |
200 |
950*900*1270 |
|
29 |
110 |
7.5 |
600 |
1500*1400*1805 |
|
35 |
150 |
11-15 |
800 |
1650*1400*1950 |
|
45 |
350 |
18.5-22 |
2000 |
1700*1500*2100 |
|

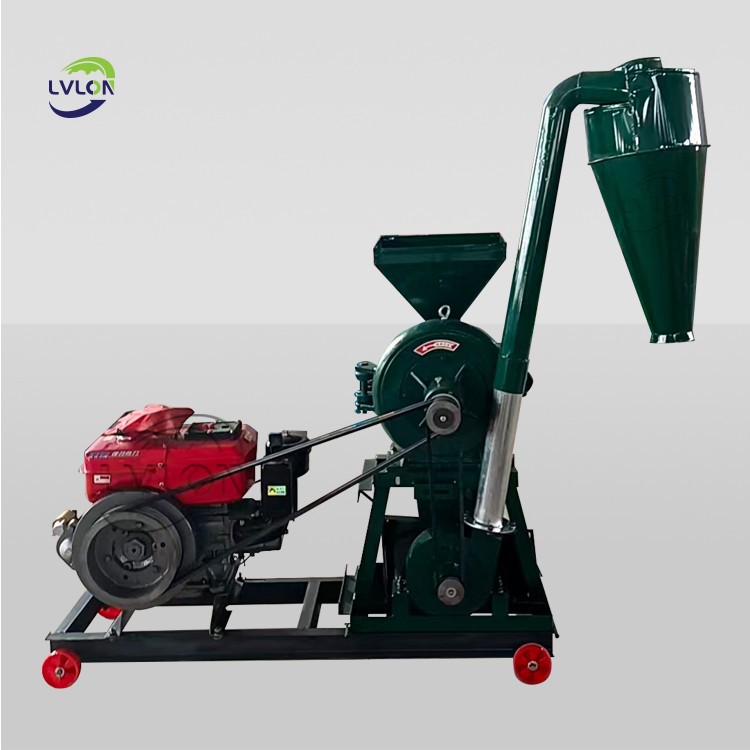

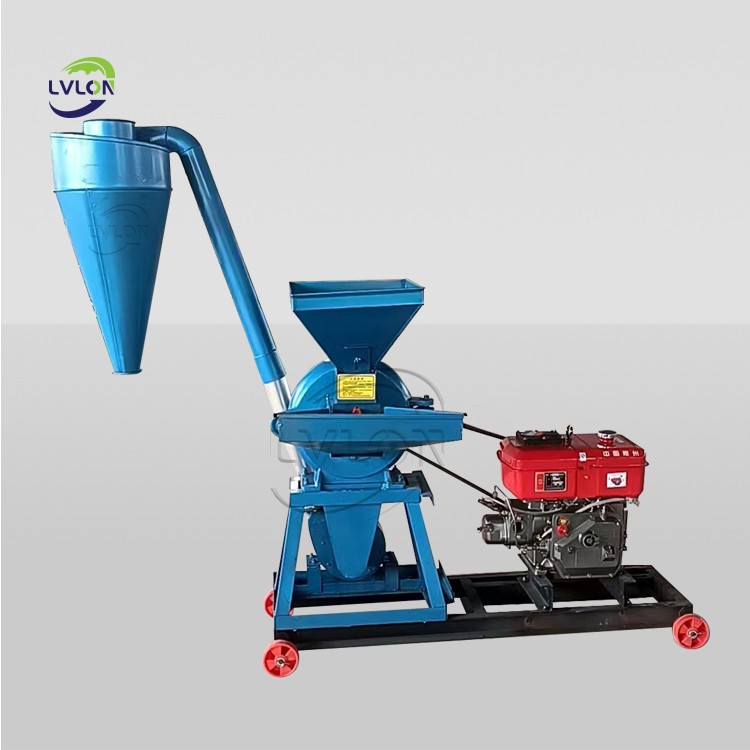

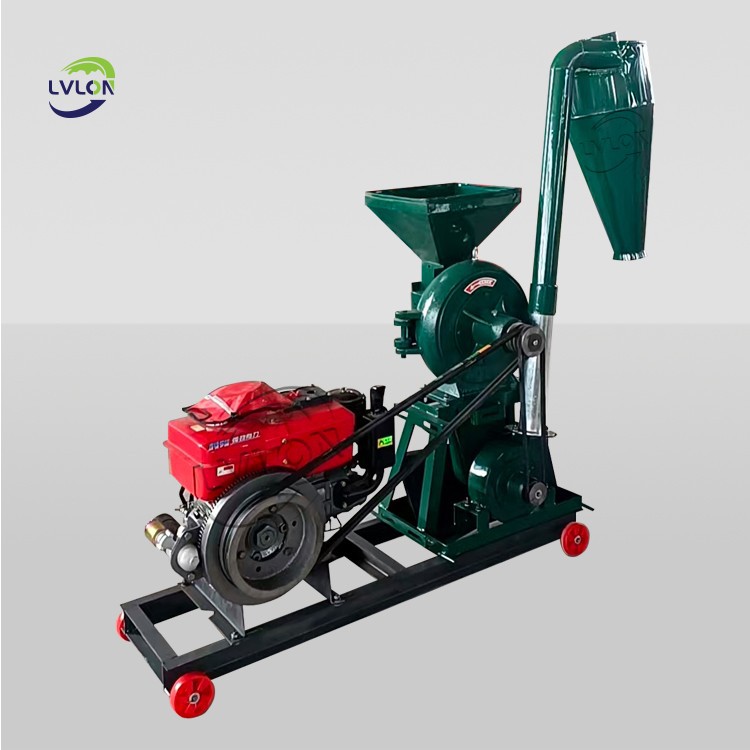

29/35/45(Diesel Engine) |
140 |
11-15 |
800 |
1300*1600*1650 |

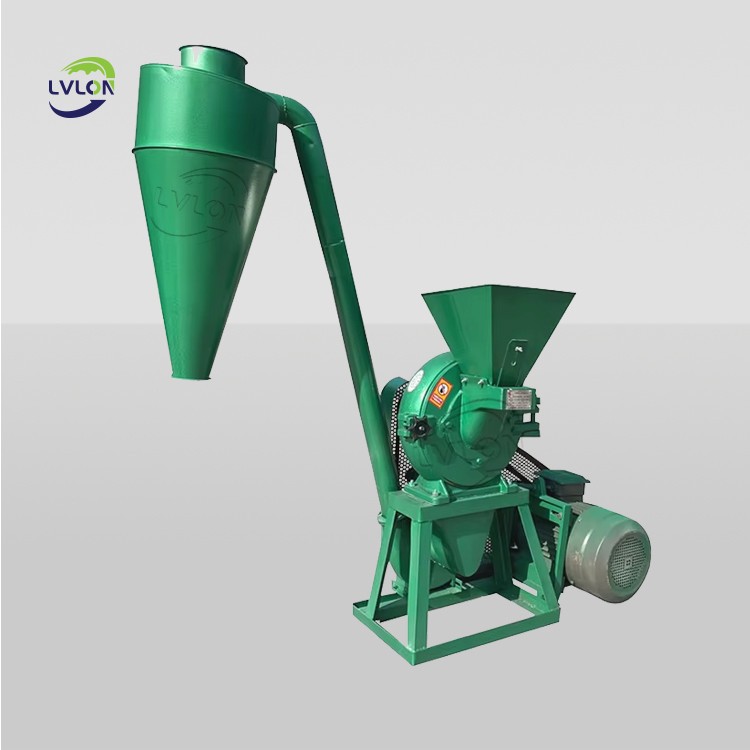

Note: The above models of maize meal milling machine - Claw Type for Super Fine Maize Powder can be equipped with different types of electric motors, gasoline engines and diesel engines as power sources according to different needs. The power models can also be matched according to the actual situation, and the appearance design can be simply customized.
Core structure and how it works
A. Core crushing component
Moving gear disk: Installed on the high-speed rotating main shaft, the disk is equipped with multiple precisely arranged flat square moving gear claws.
Fixed gear disc: Fixed on the cover of the crushing chamber of the corn grinder, with 1-2 turns of fixed tooth claws arranged alternately with the moving teeth on the inner side. The gap between the two is extremely small and can be adjusted.
Working process: After the material enters the crushing chamber of the corn mill grinder, it is first subjected to high-speed impact by the moving teeth claws, and then thrown towards the fixed teeth claws. In the narrow space formed by the interweaving of the moving and fixed teeth, it is subjected to intense shearing, collision and friction, and is repeatedly crushed until the particle size is smaller than the aperture of the sieve plate.
B. Self-priming feeding system
The corn crusher does not require a separate centrifugal fan. After starting up, it will generate a strong suction force at the feeding port.
C. Screening and discharging
The fine powder after crushing is blown out through the bottom annular sieve plate under the action of air flow and enters the collection device.
The pore size of the sieve plate determines the final particle size of the product. However, due to its compound grinding mechanism, the maize meal milling machine - Claw Type for Super Fine Maize Powder product is usually finer and more uniform than that of the hammer type with the same pore size.
Product advantages
- Maize meal milling machine - Claw Type for Super Fine Maize Powder on shearing and grinding, and can produce ultrafine corn flour and ultrafine feed powder.
- Convenient operation, self-priming negative pressure feeding, effectively improving efficiency and saving labor.
- Corn mill has a wide range of adaptability. It can be used for dry and brittle particles, such as corn, beans, wheat, coffee beans, condiment, etc.
