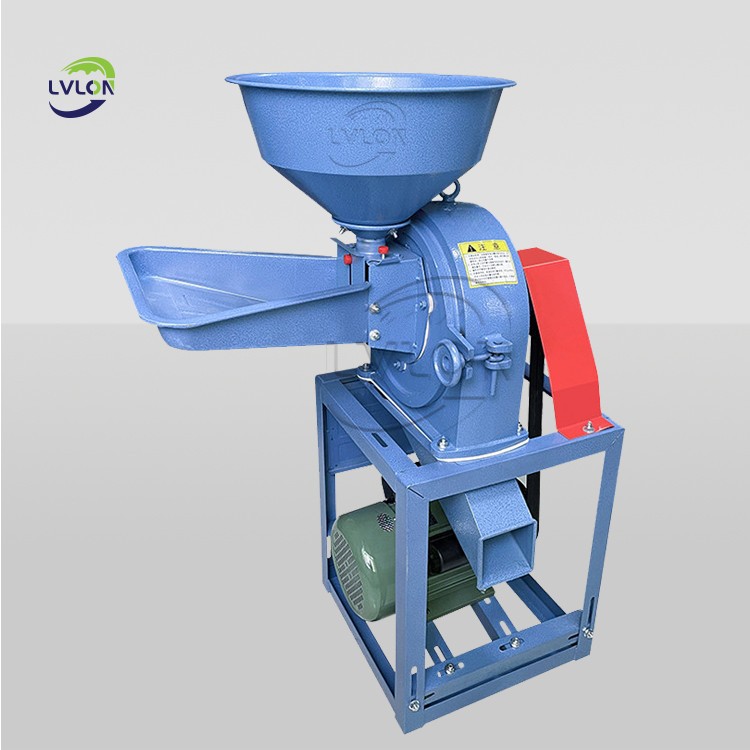

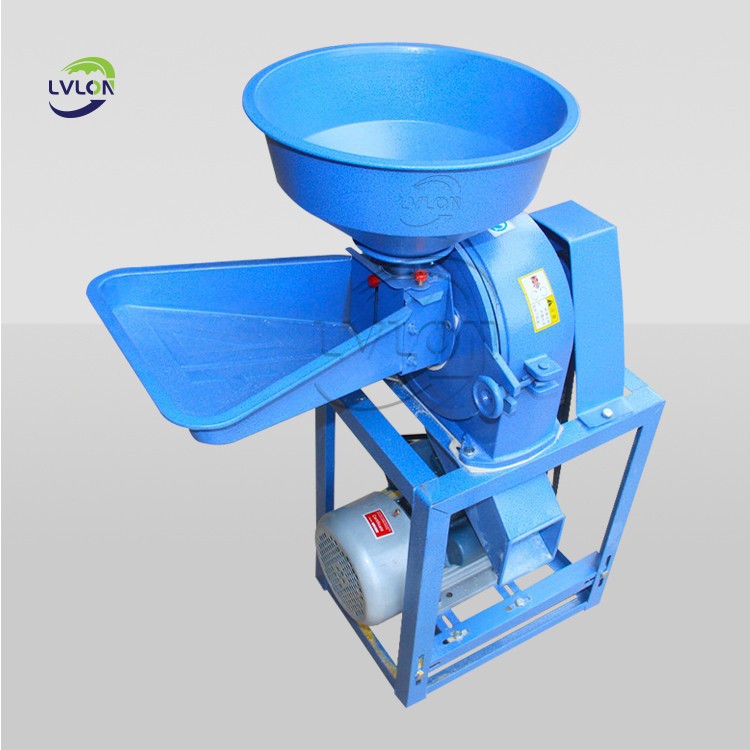

Small Grain Grinder Machine
The small grain grinder machine can not only crush various grains such as corn, wheat and beans, but also some fibrous raw materials like dry straw and hay, which can be crushed by the hammer mill. The vulnerable parts such as hammer pieces and screens are easy to disassemble and assemble, and users can replace them by themselves. It is powerful in function, adjustable in the fineness of the output, time-saving and labor-saving, easy to use, and can be used for multiple purposes. For household use, electric grain crushers are relatively more common. It can also be equipped with diesel engines or gasoline engines as power sources.
Product model
|
MODEL |
Weight (KG) |
Blade |
Hammer |
Screen |
Power |
Output (T/H) |
Dimensions (LWH) |
|
420 |
142 |
900*70 (4) |
140*40 (9) |
1480*220 (1) |
11 |
0.8 |
1220*580*700 |
|
500 |
210 |
120*70 (4) |
180*50 (12) |
1780*265 (1) |
22 |
1.2 |
1530*700*900 |
|
600 |
320 |
150*70 (4) |
180*50 (18) |
2040*265 (1) |
30 |
1.5 |
1630*730*1020 |
|
700 |
420 |
150*100 (6) |
180*50 (24) |
320*2070 (1) |
37 |
2 |
1630*830*1020 |
|
900 |
845 |
150*140 (8) |
265*50 (30) |
460*1280 (2) |
55 |
3 |
2050*1100*1350 |
|
1000 |
820 |
150*140 (8) |
265*50 (10) |
460*1280 (2) |
75 |
4 |
1180*1130*980 |
|
1200 |
1480 |
190*140 (8) |
265*50 (12) |
760*1660 (2) |
Jun-90 |
8 |
1500*1530*1240 |
|
1500 |
1860 |
230*140 (8) |
265*50 (12) |
760*1910 (2) |
110-6 |
10 |
1640*1680*1360 |
|
1000-B |
1020 |
150*140 (8) |
265*60 (40) |
750*1280 (2) |
Jun-75 |
5 |
1180*1480*980 |
|
1200-B |
1700 |
190*140 (8) |
265*60 (40) |
960*1660 (2) |
110-6 |
10 |
1530*1900*1250 |
|
1500-B |
2100 |
230*140 (8) |
265*60 (40) |
980*1910 (2) |
132-6 |
15 |
1620*1830*1370 |
|
1800 |
2960 |
190*140 (8) |
265*60 (48) |
760*2140 (2) |
160-6 |
20 |
2030*1740*1620 |
|
2200 |
5040 |
230*200 (8) |
355*80 (48) |
2580*1160 (2) |
200-6 |
25 |
2170*2430*1900 |
Note: The above models of small grain grinder machine can be equipped with different types of electric motors, gasoline engines and diesel engines as power sources according to different needs. The power models can also be matched according to the actual situation, and the appearance design can be simply customized.

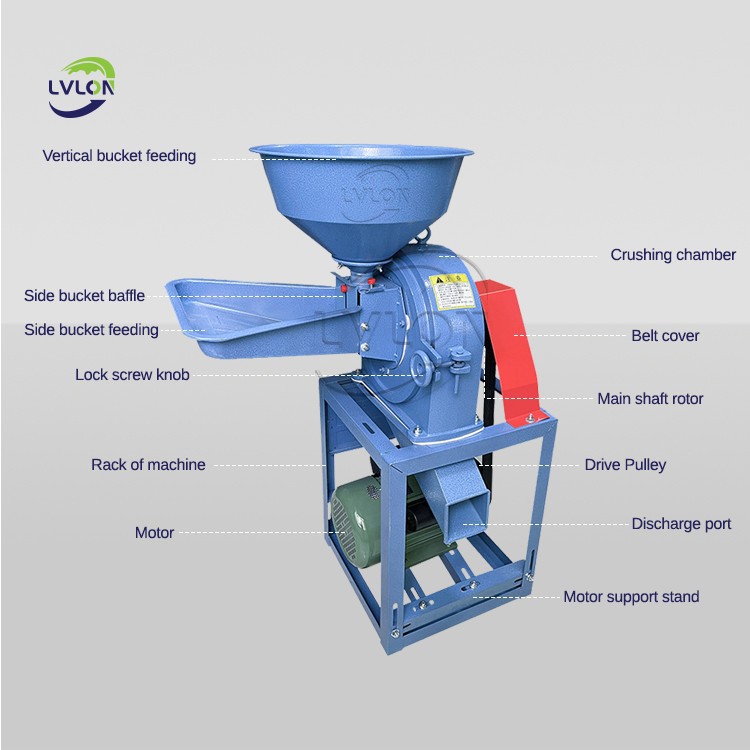

How Crushing works
A. The feeding system of the mill grain grinder adopts the descent of the material by its own weight.
B. The main shaft drives the hammer frame plate to rotate at high speed. The hammer pieces hinged on the hammer frame plate, driven by the main shaft, generate a strong impact force to strike the material. The arrangement and material of the hammer pieces directly affect the crushing efficiency and fineness.
C. Inside the crushing chamber of the small grain grinder, there are smooth wear-resistant plates, which, together with the hammer pieces, collide, rub and shear the materials.
D. Outside the main shaft rotor, there is a ring-shaped screen with a diameter ranging from 0.6mm to 3mm. The material is crushed to a size smaller than the screen's diameter and is discharged from the screen under the action of airflow.
E. The material passing through the screen of the small grinding mill falls by its own gravity.
Product advantages
It is particularly practical. It can not only be used as a corn grinder, wheat grinder, barley grinder and other types of grains for crushing, but also process some dry straw, hay and other fibrous raw materials.
The fineness can be adjusted. By replacing the screens with different hole diameters, products of different fineness can be produced.
The core components of the small grain grinder machine, such as hammer pieces and screens, are easy to disassemble and assemble. Users can replace them by themselves. The structure is simple and maintenance is very convenient.
Under the same power, its production efficiency is higher than that of the disc mill, and it has a very high cost performance.
