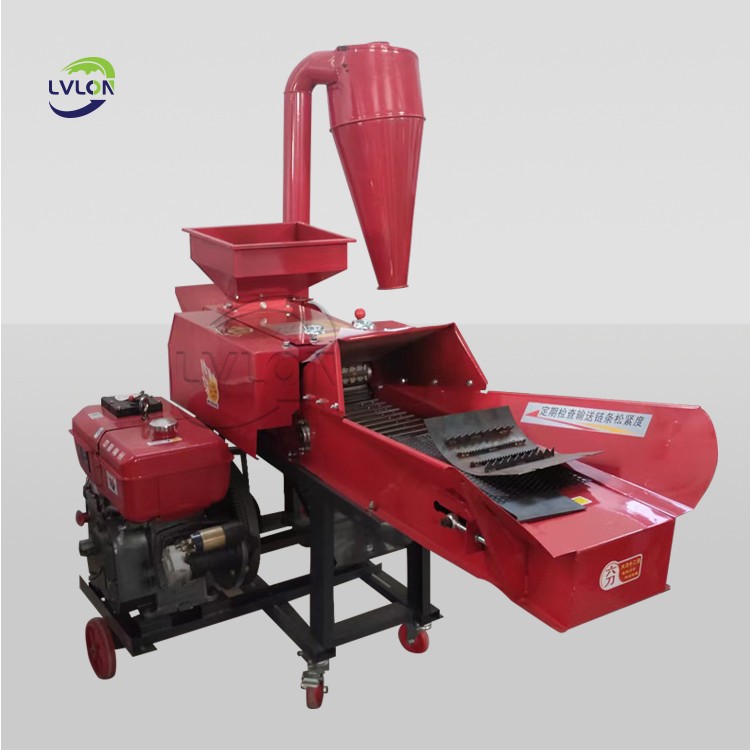

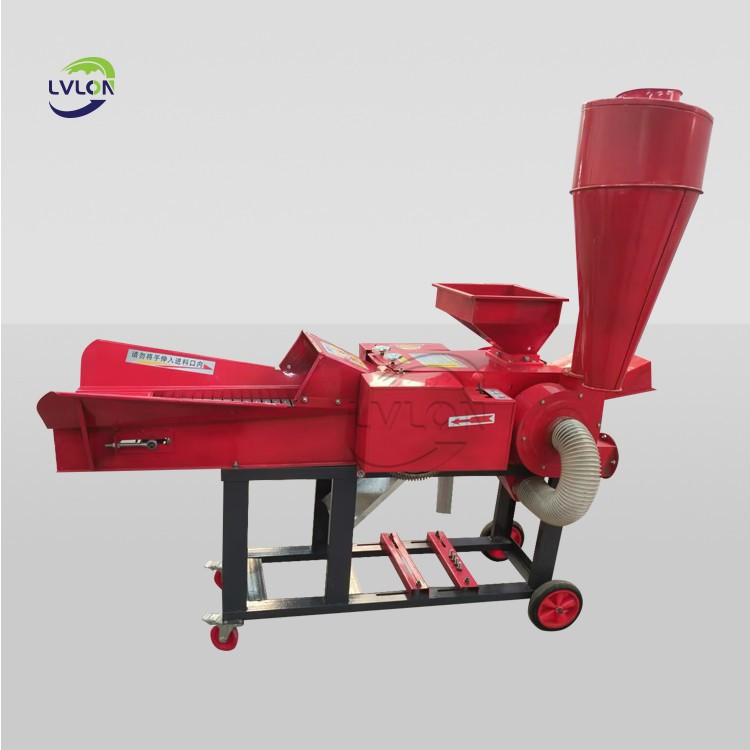

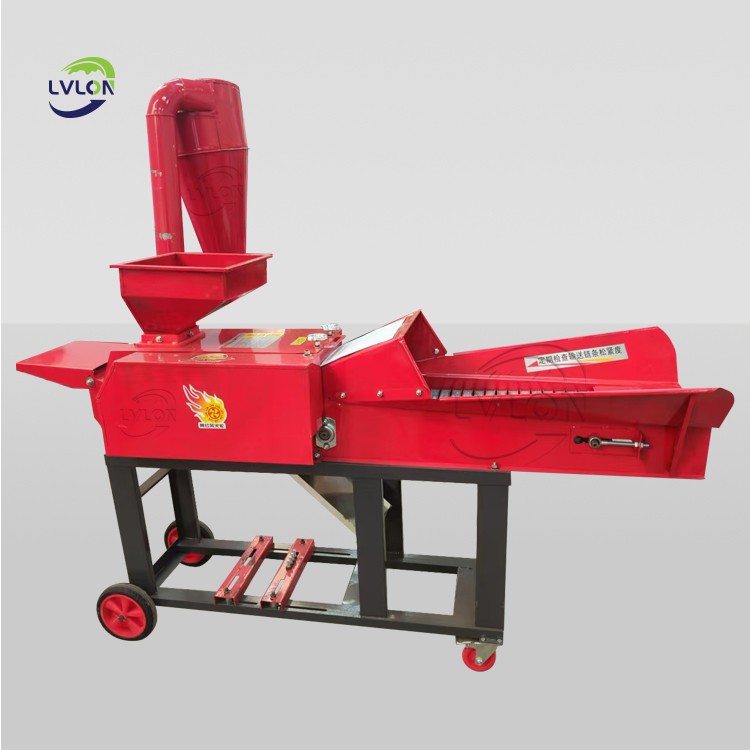

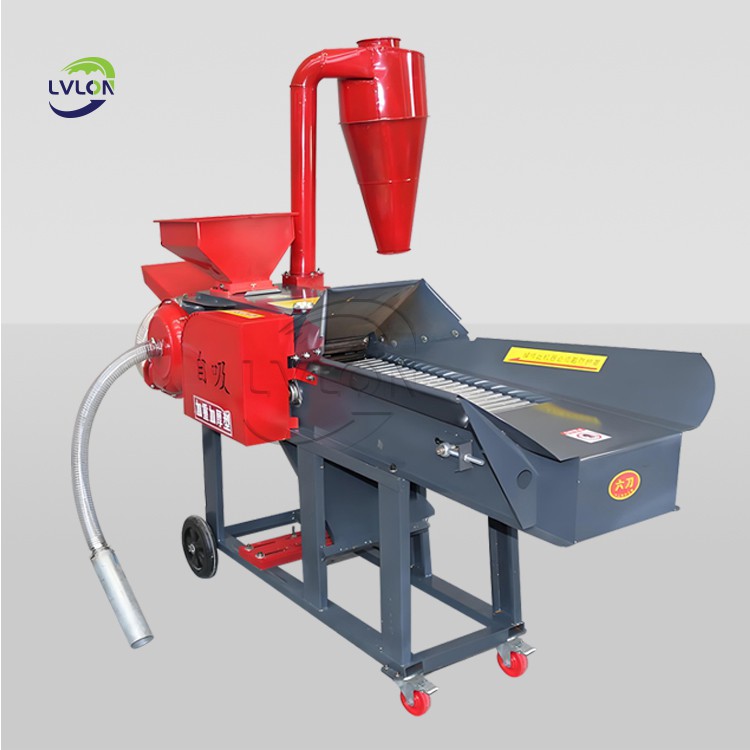

Animal Feed Chaff Cutter Machine

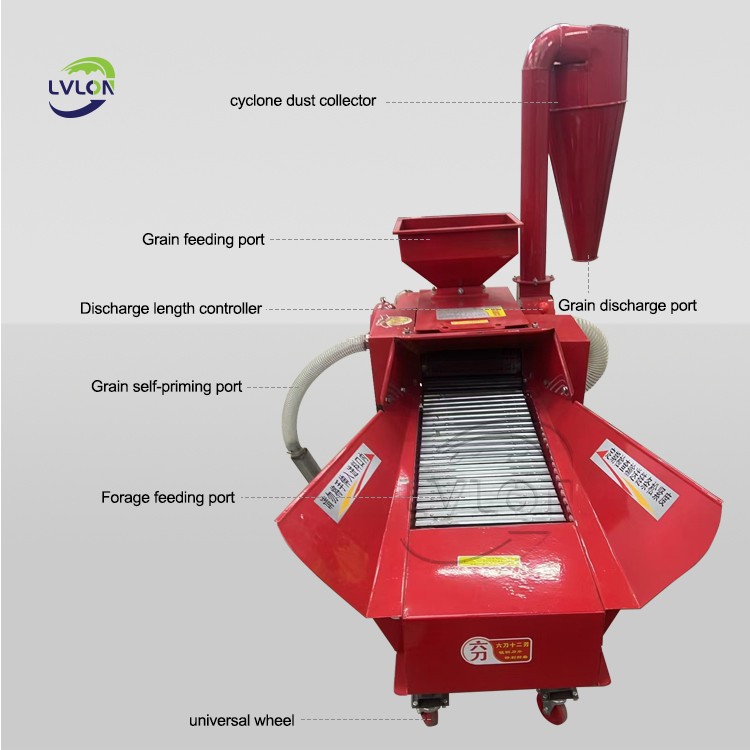

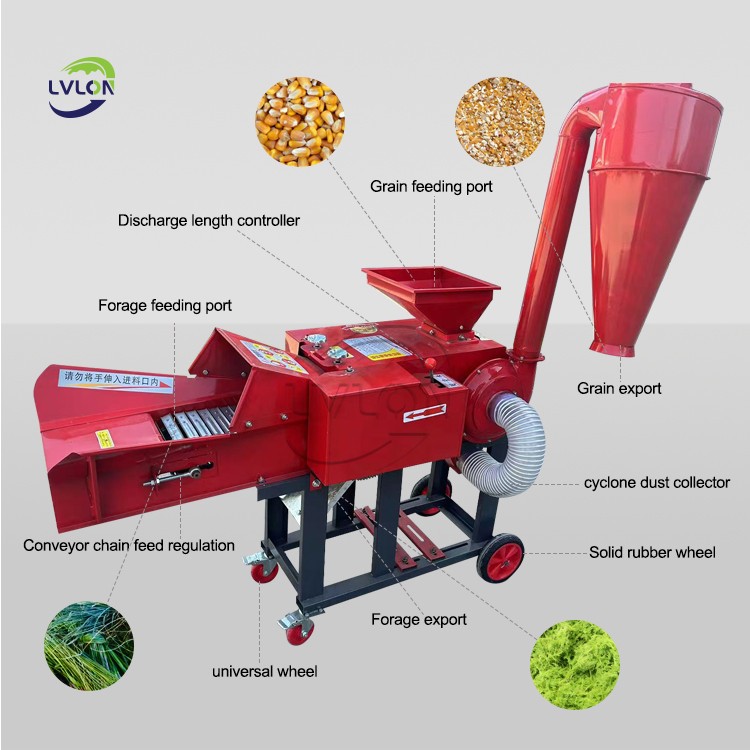

The animal feed chaff cutter machine uses an electric motor (diesel engine or gasoline engine) as the supporting power, and transmits the power to the main shaft through belt drive. The gear at the other end of the main shaft drives the integral gear, etc. After speed regulation, the power is transmitted to the grass pressing roller. When the material to be processed enters between the upper and lower pressing rods, it is held by the upper and lower rods and sent into the chopping device at a certain speed. After being crushed by a high-speed rotating knife (or a triangular blade for re-crushing), it is kneaded into shreds by a working chamber board and the soil is removed. Subsequently, relying on the force generated by the rotor, the processed materials are thrown out of the machine through the grass opening.

More durable material: The cutter, grinding blade and hammer are all made of manganese steel, making the core components wear-resistant and damage-resistant. The overall lifespan is twice as long as that of ordinary steel.

Portable: The machine is equipped with two solid rubber wheels and two swivel wheels, and is fitted with a locking device, which enables the hay cutter to be moved to different locations for work as needed.

Multi-power combination: Multiple power mode combinations are available for selection. You can choose different power configurations based on the local actual environment.
