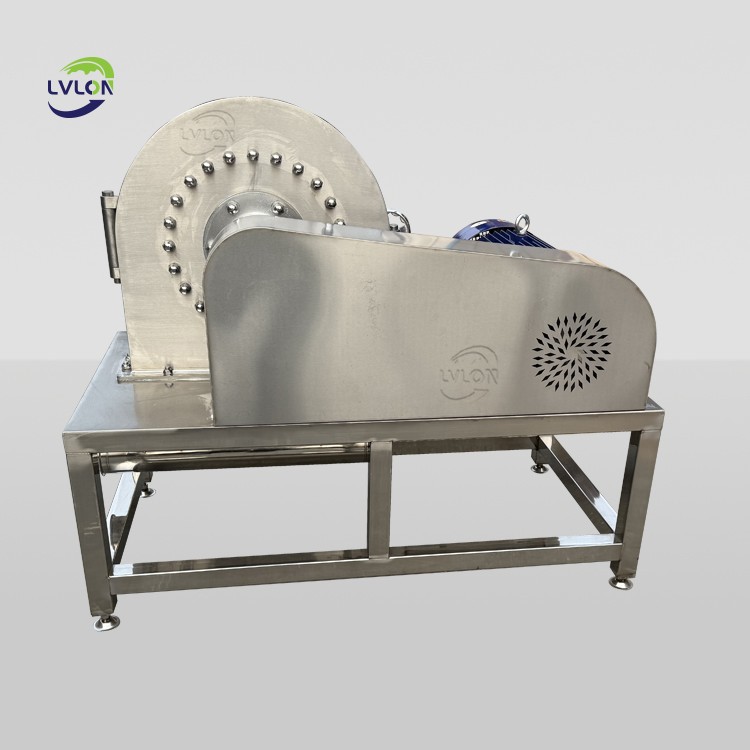

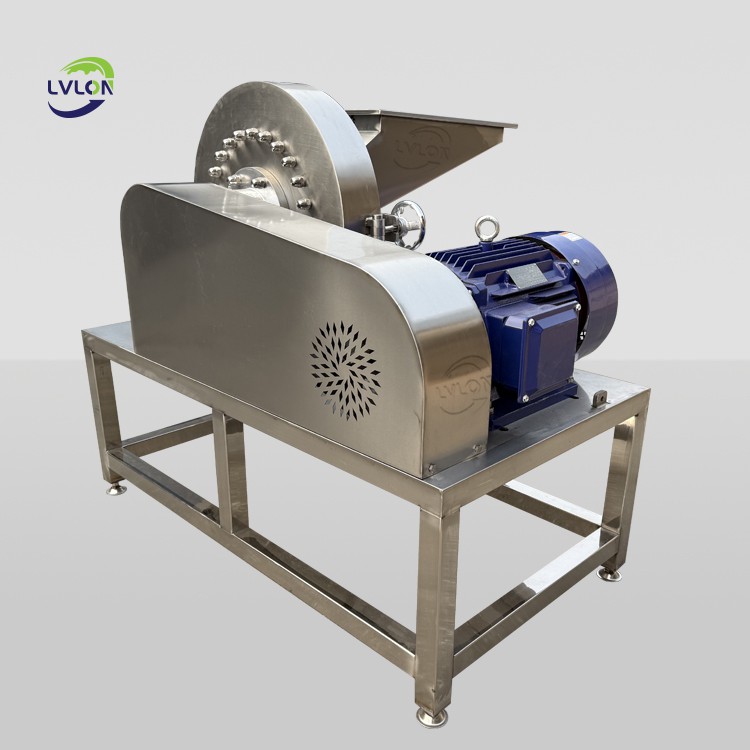

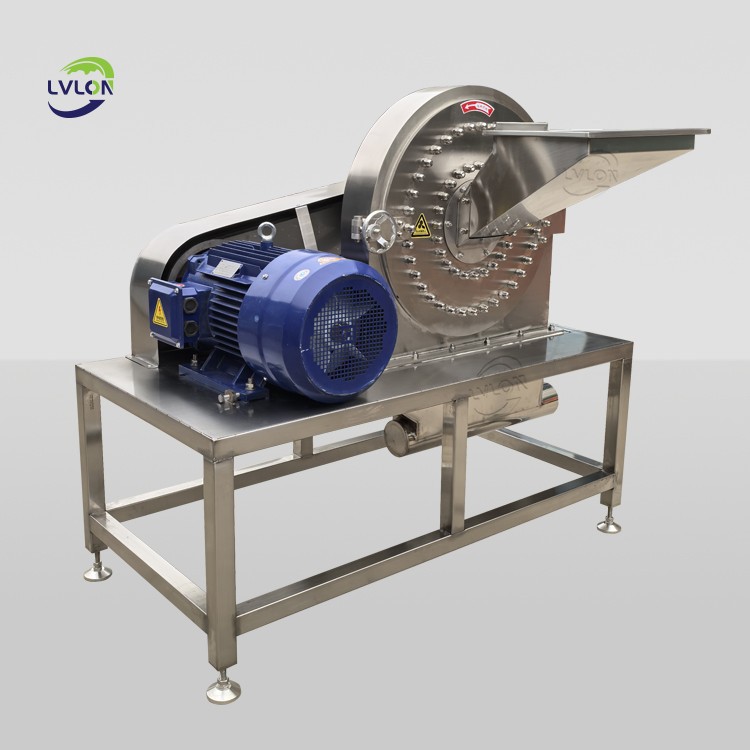

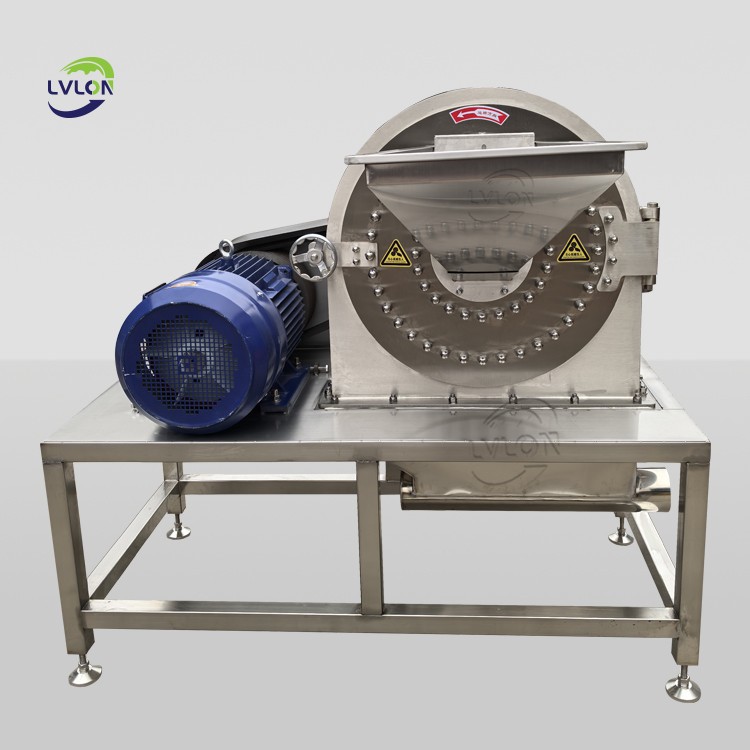

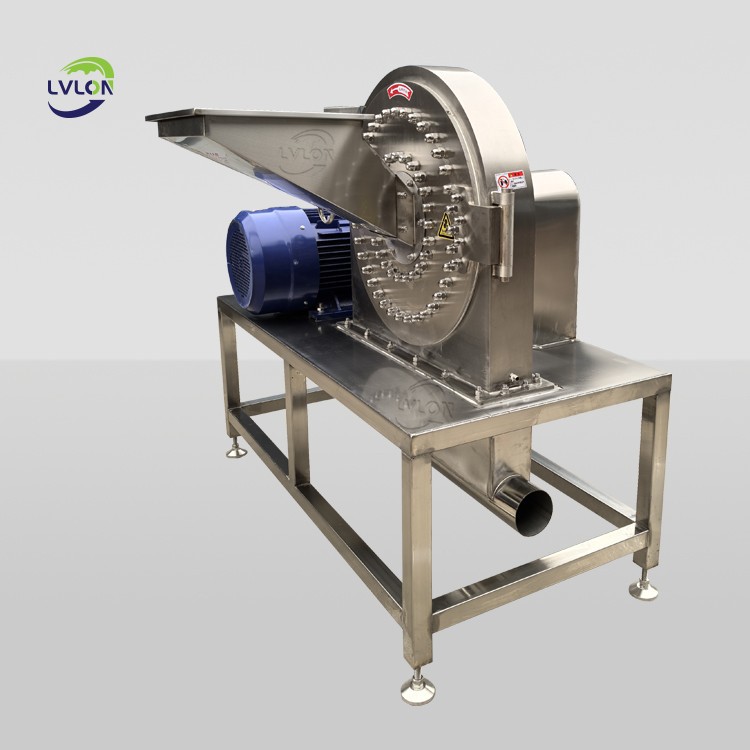

Industrial Spice Grinder
This industrial spice grinder is very practical. The entire body is made of 304 stainless steel, which is not prone to rust and is very easy to maintain. It comes with a water cooling system, which is quite important. The industrial spice grinder machine does not get too hot when grinding, thus preserving the quality of the materials. It is very durable when used daily, grinding materials quickly and finely, and is very convenient.
Product Model
We have these standard industrial spice grinder models. All are available for wholesale, so take a quick look below. They're all ready for your bulk orders.
|
Model |
V (v) |
P (kW) |
CAP. (kg/h) |
Impeller (mm) |
WT.(kg) |
Fineness (μm) |
DIM. (L*W*H)(mm) |
|
YW-200 |
220/380 |
2.2 |
10-50 |
Φ160 |
100 |
150-2000 |
700*600*900 |
|
YW-300 |
220/380 |
4 |
30-200 |
Φ230 |
160 |
150-2000 |
970*610*910 |
|
YW-400 |
380 |
7.5 |
50-300 |
Φ230 |
200 |
150-2000 |
1220*830*1330 |
|
YW-500 |
380 |
11 |
70-400 |
Φ370 |
260 |
150-2000 |
1220*930*1330 |
|
YW-600 |
380 |
15 |
100-500 |
Φ450 |
350 |
150-2000 |
1400*1000*1450 |
|
YW-800 |
380 |
18.5/22 |
500-1500 |
Φ600 |
550 |
150-2000 |
1450*1100*1450 |
Note: V(Operating Voltage) P(Motor Power) CAP.(Capacity) WT.(Weight) DIM.(Dimension) L*W*H(Length*Width*Height)
Custom Options: Need a tailored industrial spice grinder? We've got you covered! We can swap in different power setups – gasoline, diesel, or electric motors. Simple look tweaks are also easy – just tell us what you want!
Core Challenges of Spice Grinding and Equipment Solutions
Loss of flavor and aroma
Low-temperature grinding is adopted to prevent volatile components from being lost due to high-temperature evaporation. To address the issue of the grinding machine heating up during the grinding process, we have equipped a circulating water cooling system between the grinding chamber and the body shell to ensure that the grinding chamber remains at a low temperature throughout the process.
Cross-contamination and Cleaning
The fully contact components are made of food-grade 304 stainless steel to prevent iron ion contamination. The inner walls of the grinding machine chamber are mirror-polished, without any screw residue areas. It has a quick-opening structure. All contact components can be quickly disassembled for thorough cleaning, preventing residue from causing flavor mixture.
Oils and fibers processing
For oil-based materials such as nuts and seeds, the water-cooling system and 304 stainless steel material of the industrial spice grinder can effectively prevent overheating from causing oil leakage, clumping and deterioration, ensuring that the powder is dry and fine.
For high-fiber materials such as tea and medicinal herbs, the machine's powerful power and optimized cutter design can effectively cut the fibers, prevent entanglement, achieve uniform grinding, and the stainless steel surface is smooth, not prone to sticking to the material, making it easy to clean.
Target application bill of materials
This industrial spice processing machine handles a wide range of materials, including:
- Spices: Pepper, chili, cinnamon, cloves, cardamom, ginger, garlic
- Herbs: Basil, rosemary, parsley, mint, tea
- Seeds: Sesame, mustard seeds, fennel seeds
- Compound seasonings: Curry powder, five-spice powder, pre-mixed soup powder
Business and technical support
Sample Grinding Service
Send us your spice samples, and we'll run a free test grind on our industrial spice grinder! We'll provide a detailed grinding report with finished product fineness data, process temperature records, and retained sample specimens for your review.
Process Consultation
Based on your specific spice types, we'll deliver a full industrial spice grinding production line proposal-covering pre-treatment (pre-crushing, drying) and post-treatment (dust removal, packaging) for seamless integration into your workflow.
Wear Parts List
We provide a clear breakdown of expected lifespan and replacement costs for wear-prone parts (screens, meshes, bearings) on your industrial spice grinder machine-so you can plan maintenance and budget ahead with confidence.
